武峰管道
 |
 |

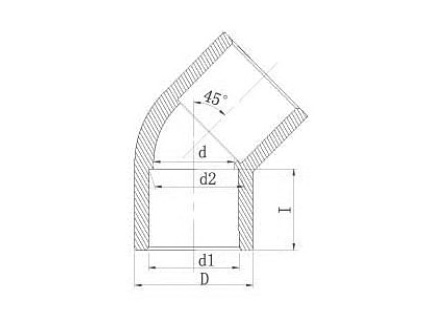

| Nominal | Socket Type | Structural Diameter | |||
| SIZE | d1 | d2 | I | D | d |
| 1/2" | 21.40 | 21.25 | 30.00 | 24.00 | 16.00 |
| 3/4" | 26.75 | 26.58 | 35.00 | 27.00 | 22.00 |
| 1" | 33.52 | 33.28 | 44.00 | 30.00 | 30.00 |
| 1-1/4" | 42.28 | 42.05 | 54.00 | 34.00 | 38.00 |
| 1-1/2" | 48.4 | 48.12 | 60.00 | 37.00 | 43.00 |
| 2" | 60.45 | 60.18 | 73.00 | 40.00 | 54.00 |
| 2-1/2" | 73.30 | 72.85 | 88.00 | 46.50 | 67.00 |
| 3" | 89.25 | 88.70 | 105.00 | 50.00 | 82.00 |
| 4" | 114.60 | 114.10 | 132.00 | 60.00 | 106.00 |
| 5" | 141.50 | 141.10 | 162.00 | 69.00 | 133.00 |
| 6" | 168.50 | 168.00 | 191.00 | 79.00 | 158.00 |
| 8" | 219.80 | 218.70 | 246.00 | 105.00 | 200.00 |
