武峰管道
 |
 |

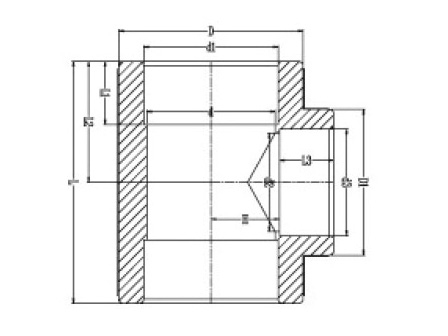

| Nominal | Socket Type | Structural Diameter | ||||
| SIZE | d1 | D | D3 | D1 | L1 | L |
| 3/4"*1/2" | 24.1 | 33.6 | 15.3 | 28.0 | 16.3 | 63.1 |
| 1"*3/4" | 31.0 | 42.4 | 24.1 | 33.6 | 18.2 | 74，0 |
| 1-1/4"*1" | 39.0 | 52.6 | 31.0 | 42.4 | 21.6 | 84.1 |
| 1-1/2"*1-1/4" | 49.0 | 66.0 | 39.0 | 52.6 | 25.2 | 101.5 |
| 2"*1-1/2" | 61.9 | 84.4 | 49.0 | 66.0 | 28.6 | 122.4 |
| 2-1/2"*2" | 73.6 | 95.8 | 61.9 | 84.4 | 32.5 | 138.2 |
| 3"*2" | 88.3 | 113.7 | 61.9 | 84.4 | 36.2 | 138.2 |
| 3"*2-1/2" | 88.3 | 113.7 | 73.6 | 95.8 | 36.4 | 164.1 |
| 4"*2-1/2" | 107.9 | 138.4 | 73.6 | 95.8 | 41.9 | 193.8 |
| 4"*3" | 107.9 | 138.4 | 88.3 | 113.7 | 41.9 | 193.8 |
